Using the Terminal
The Linux command line is one of two methods for accessing Buddy resources. It’s features, power, and flexibility are essential for those wishing to properly utilize the cluster. While the navigation terminal may seem confusing, many of it’s aspects are straightforward.
Background
When computer first came about, one of the first operating systems to arrive was Unix. It was designed to run as a multi-user system on mainframe computers, with users connecting to it remotely via individual terminals. These terminals were extremely simplistic and consisted primarily of a keyboard and screen.
Compared to graphics, text is very light on resources. Because of this, older machines could run dozens of terminals even across the slowest of networks. Despite the nature of terminals, users were still able to interact with programs quickly and efficiently. The commands were also kept very short to reduce the number of keystrokes needed, which sped up the use of the terminal even more. This speed and efficiency is one reason why this text interface is still widely used today.
When logged into a Unix mainframe via a terminal users still had to manage the sort of file management tasks that you might now perform with a mouse and a couple of windows. Whether creating files, renaming them, putting them into subdirectories or moving them around on disk, users could do everything entirely with a textual interface.
Buddy utilizes an operating system called Linux. While it bears some similarities to Unix, it is most definitely not identical and has many major differences. Buddy’s terminal operates using something called “Bash” for users to communicate via the command line. Bash is widely used on Linux systems, and is well documented. This page will cover some basic functions of Bash, including some simple scripting.
Accessing the Terminal
The terminal can be accessed in one of two ways. One is via the web browser, and the other is via SSH. Upon opening, you will be greeted with a black screen and blinking cursor.
Web browser Access

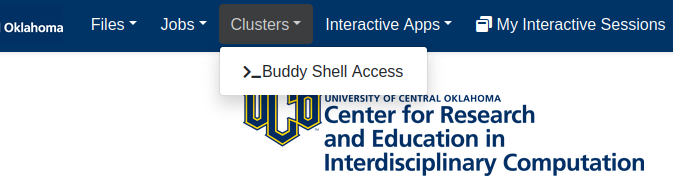

The easiest way to access the terminal is via OnDemand. Once you are logged in, you can access the terminal by going to Clusters>Buddy Shell Access. This will open up a terminal for you in a new window.
You will see the terminal in your web browser once you are logged in
SSH Access
SSH access is also available for users who desire to use a preferred terminal emulator. You can ssh into buddy by connecting to username@buddy.uco.edu
. There are few applications available to utilize SSH
Note
Please read the associated documentation for each of these softwares if you desire to use them. Users uncomfortable with this method of access are recommended to use the built in OnDemand terminal mentioned above for SSH and the OnDemand file browser for uploading and downloading files to Buddy.
Windows
Powershell: Powershell is a built in Windows terminal emulator that uses the Powershell language. You can access it via your start menu and connect Buddy by using the command
ssh username@buddy.uco.edu
. You can exit the ssh prompt by typingexit
.Putty: Putty is a popular option for Windows and can be downloaded from the Putty website.
MobaXTerm: MobaXTerm is another common software and can be downloaded form the Moba website.
WinSCP: WinSCP is a software that is not for SSH, but rather file transfer over SCP.
OSX
Terminal: OSX has it’s own built in terminal emulator. It can be accessed from your utility folder and you can connect to Buddy with the command
ssh username@buddy.uco.edu
. You can exit the ssh prompt by typingexit
.Finder: Your file browser in Mac OS can be used to directly connect Buddy for file transfer. You will want to connect to
sftp://username@buddy.uco.edu
.
Warning
Filezilla is no longer recommended as it’s installer comes bundled with other software! While the bundled offer is not malicious, this can be considered undesireable as the bundled application is installed in a deceptive manner and can interfere with your anti-virus.
Terminal Basics
This section will teach everyday commands that will be used regularly in the terminal. On a terminal, you don’t have a file browser, word, or any other “GUI” application. But that doesn’t mean it is difficult to use. While there is a learning curve, once common commands are memorized, it’s as easy as riding a bike.
Creating and Deleting Files and Directories
Often, it is needed to make a new directory. To do this we use the “MaKe DIRectory” command. As previously discussed, it is suggested to not name directories with spaces.
[skelting1@buddy ~]$ mkdir Data_Folder_03
[skelting1@buddy ~]$ ls
batchjob.sh Data_Folder_01 Data Folder 02 Data_Folder_03 slurm_output.txt
To delete a directory, we simply use the “ReMove DIRectory” command.
[skelting1@buddy ~]$ rmdir Data_Folder_03
[skelting1@buddy ~]$ ls
batchjob.sh Data_Folder_01 Data Folder 02 slurm_output.txt
This isn’t always the best option. Especially considering it fails to work of your directory contains file within it. For that reason, the “ReMove” command is generally recommended. This works for both files and directories. Notice that to remove a directory, we must pass a “Recursive” option, but a file doesn’t require it.
[skelting1@buddy ~]$ ls
batchjob.sh Data_Folder_01 Data Folder 02 Data_Folder_03 slurm_output.txt
[skelting1@buddy ~]$ rm slurm_output.txt
[skelting1@buddy ~]$ ls
batchjob.sh Data_Folder_01 Data Folder 02 Data_Folder_03
[skelting1@buddy ~]$ rm -r Data_Folder_03
[skelting1@buddy ~]$ ls
batchjob.sh Data_Folder_01 Data Folder 02
If you want to delete several similarly named files, like output files, you can replace the part that differs between the paths by a star which is called a wildcard.
[skelting1@buddy ~]$ ls
data-001.out data-002.out data-003.out data-004.out foobar.out example.txt
[skelting1@buddy ~]$ rm data-*.out
[skelting1@buddy ~]$ ls
foobar.out example.out
Warning
The rm
command is permanent!! There is no trashcan to restore files from, and data recovery is not possible. Please be careful when using this command. Remember, think twice, hit enter once.
You may notice that if the directory is filled with files, it may prompt you about deleting each and every file. If this is the case, we can use the “Force” option.
[skelting1@buddy ~]$ rm -r -f Data_Folder_03
or
[skelting1@buddy ~]$ rm -rf Data_Folder_03
There may be instances when you want to create a blank file. Do do this, we use the touch command
[skelting1@buddy ~]$ touch script.sh
[skelting1@buddy ~]$ ls
batchjob.sh Data_Folder_01 Data Folder 02 script.sh slurm_output.txt
Copy, Move, and Rename
Often times, we want to replicate files and folders on our system. To do this, we use the “CoPy” command. For copying directories that contain files, we also want to include a “Recursive” option. When using copy, we will first specify the source followed by the destination
[skelting1@buddy ~]$ cp script.sh copy-of-script.sh
[skelting1@buddy ~]$ ls
batchjob.sh copy-of-script.sh Data_Folder_01 Data Folder 02 script.sh slurm_output.txt
[skelting1@buddy ~]$ cp -r Data_Folder_01 Data_Folder_04
[skelting1@buddy ~]$ ls
batchjob.sh copy-of-script.sh Data_Folder_01 Data Folder 02 Data_Folder_04 script.sh slurm_output.txt
We can also copy files or directories into other directories
[skelting1@buddy ~]$ cp script.sh Data_Folder_01/script.sh
[skelting1@buddy ~]$ ls Data_Folder_01
data-set-01.dat data-set-02.dat meta script.sh
The “MoVe” command is used to move files from one place to another. Its behavior can change depending on what paths you provide and what those paths go to.
If you provide two paths and the first one exist while the second one does not, the first file will be renamed to the second.
[skelting1@buddy ~]$ ls
batchjob.sh copy-of-script.sh Data_Folder_01 Data Folder 02 script.sh slurm_output.txt
[skelting1@buddy ~]$ mv script.sh foobar.sh
[skelting1@buddy ~]$ ls
batchjob.sh copy-of-script.sh Data_Folder_01 Data Folder 02 foobar.sh slurm_output.txt
Note
If foobar.sh already exists, the command will throw an error. Using the -f flag will allow you to overwrite foobar.sh
This works for directories as well with one exception. If the last path provided is an existing directory, whatever is at all of the other paths will be moved into the directory
[skelting1@buddy ~]$ ls
batchjob.sh copy-of-script.sh Data_Folder_01 Data Folder 02 foobar.sh slurm_output.txt
[skelting1@buddy ~]$ mv batchjob.sh copy-of-script.sh foobar.sh slurm_output.txt Data_Folder_01
[skelting1@buddy ~]$ ls
Data_Folder_01 Data Folder 02
[skelting1@buddy ~]$ ls Data_Folder_01
data-set-01.dat data-set-02.dat meta script.sh batchjob.sh copy-of-script.sh foobar.sh slurm_output.txt
You can also use wildcards to move similarly named paths as well. If you wanted to move your .dat
files back out of Data_Folder_1 and into the current working directory you could do the following
[skelting1@buddy ~]$ ls Data_Folder_01
data-set-01.dat data-set-02.dat meta script.sh batchjob.sh copy-of-script.sh foobar.sh slurm_output.txt
[skelting1@buddy ~]$ mv Data_Folder_01/*.dat .
[skelting1@buddy ~]$ ls
data-set-01.dat data-set-01.dat Data_Folder_01 Data Folder 02
Note
Notice the use of the special .
path to reference the current working directory
Common Commands and Features
File Viewing/Editing and Pipes
Viewing
Viewing the contents of a file is a common task so there are a couple of commands to do so. The “conCATenate” command is used to display the entire contents of a file
[skelting1@buddy ~]$ cat data-set-01.dat
key1 value1
key2 value2
key3 value3
The name “conCATenate” comes from its ability to join the output of files together. This is evident when viewing the contents of several files at once
[skelting1@buddy ~]$ cat data-set-01.dat data-set-02.dat
key1 value1
key2 value2
key3 value3
other data1
other data2
other data3
You could have also used the wildcard character here: cat *.dat
If you just want to view the beginning or end of a file you can use the head and tail commands respectively. The -n
flag specify how many lines you would like to see; defaulting to 10 if the -n flag is omitted
[skelting1@buddy ~]$ tail -n 2 data-set-01.dat
key2 value2
key3 value3
[skelting1@buddy ~]$ head -n 2 data-set-01.dat
key1 value1
key2 value2
Tail has a useful feature in the -f
flag which causes tail to watch for changes in the given files and updates the screen as they occur. This is particularly useful for output files such as those generated by slurm scripts
[skelting1@buddy ~]$ tail -n 2 -f slurm.out
output line 2
output line 3
later…
[skelting1@buddy ~]$ tail -n 2 -f slurm.out
output line2
output line3
output line4
Note
Displaying the contents of a file usually only makes since is that file is plain text; i.e. not a binary file. Catting out a .bin file will just result in your screen being filled with random nonsense characters
Editing with nano
To begin editing a file with nano pass its file path to the nano
command
[skelting1@buddy ~]$ nano data-set-02.dat
1April 1st subject baseline
2May 5th subject reports weight loss
3June 3rd subject reports light-headedness may be due to trial drug
4June 10th trial discontinued
Navigate using arrow keys and edit the file by typing characters and using backspace like you’d expect. The characters you type will appear before the currently selected character.
Note
When using the nano editor, command shortcuts appear at the bottom of the screen. These shortcuts can be confusing if you aren’t familiar with the notation so just remember that ^
refers the Ctrl
key and M
represents the meta key also known as the Alt
key on windows or the Option
on Mac.
Copy, cut, and paste can be achieved by first selecting the desired text. Move the cursor to the first character of the selection, hold Shift
and use the arrow keys to select all desired characters. Then press Alt+6
or Option+6
to copy or Ctrl+k
to cut, move to the desired paste location and press Ctrl+u
to paste.
Save using Ctrl+o
and exit using Ctrl+x
.
Editing with vim
To begin editing a file with nano pass its file path to the vim
command
[skelting1@buddy ~]$ vim data-set-02.dat
1April 1st subject baseline
2May 5th subject reports weight loss
3June 3rd subject reports light-headedness may be due to trial drug
4June 10th trial discontinued
Vim uses the concept of “modes” to categorize different kinds of behavior. For instance, typing new portions of a file must happen within “insert mode”. Understanding how to use and swtich between modes is one of the most important parts of using vim.
To enter a mode first enter “normal” mode by pressing the ESC
key. You can think of this as backing out of whatever other mode you might already be in. Then press the appropriate key to enter your desired mode.
Tip
If you hit something by mistake and can’t figure out how to get out of it, just spam the ESC
key. This will always get you back to vim’s normal mode and you can get where you want from there. When in doubt, get to normal mode.
Shortcut |
Mode |
Description |
---|---|---|
ESC |
Normal mode |
manipulate whole lines and jump into other modes |
i |
Insert mode |
insert and delete characters like a normal editor |
Ctrl+v |
Block visual mode |
select character by character and across multiple lines |
Shift+v |
Linewise visual mode |
select multiple lines |
: |
Command mode |
type commands to perform various vim functions |
To begin editing a file, make sure you’re in normal mode by pressing ESC
, enter insert mode by pressing i
, and begin editing.
Cut, copy, and paste can be caried out on entire lines or on selected portions of text.
To copy an entire line, enter normal mode by pressing ESC
, navigate the cursor to the desired line, and “yank” the line with yy
. Cut is similar to copy but you “delete” the line with dd
instead of “yanking” it. To paste the stored line, navigate the cursor to a line near where you would like to “put” it and press p
to paste the below the current line or Shift+p
to paste above it.
To copy or cut a selection you first need to select some text. To select multiple lines, first be sure you’re in normal mode by typing ESC
, then navigate to the first line you would like to select and enter “linewise visual mode” by pressing Shift+v
. Finally use the up and down arrow keys to select more lines. To select a block of text, first be sure you’re in normal mode by pressing ESC
, then navigate the first character you would like to select and enter “block visual mode” by pressing Ctrl+v
. Finally use the arrow keys to complete your selection.
With some of the text selected you can “yank” (copy) the selection with y
or “delete”(cut) it with d
. You can “put”(paste) the selected text using p
or Shift+p
. If you made the selection using “linewise visual mode” the selection will be pasted above or below the current line. If you made the selection using “block visual mode” the selection will be pasted before or after the currently selected character.
To save the current file or exit vim you need to use the appropriate vim commands. Firstly, you need to be sure you are in normal mode by typing ESC
then jump into command mode by typing :
. In command mode you can save the current file by typing the w
command and hitting enter. To save and quit type wq
and hit enter. You can quit without saving by just using the q
command if you haven’t edited the file otherwise you will have to force vim to exit without saving by using the q!
command.
Pipes
Sometimes you may want to take the output of a command and so something with it like storing it in a file or passing it to another command; this is where pipes become useful
For example: if you wanted to store the result of the ls
command as a file, you could do the following
[skelting1@buddy ~]$ ls > output.txt
[skelting1@buddy ~]$ cat output.txt
data-set-01.dat data-set-02.dat meta
The >
pipe places the output of the previous command into the given file; creating it if it doesn’t already exist and overwriting it if it does. If you wish to append the command output to the end of the given file instead of overwriting it use the >>
pipe.
[skelting1@buddy ~]$ ls >> output.txt
[skelting1@buddy ~]$ cat output.txt
data-set-01.dat data-set-02.dat meta
[skelting1@buddy ~]$ ls >> output.txt
[skelting1@buddy ~]$ cat output.txt
data-set-01.dat data-set-02.dat meta
data-set-01.dat data-set-02.dat meta
To pass the output of one command as input to another use the |
pipe. For example if you only wanted the last two lines of the ls -a
command you could do the following.
[skelting1@buddy ~]$ ls -l
total 16
drwxr-xr-x 2 tdunn3 tdunn3 4096 May 4 11:35 Data_Folder_01
drwxr-xr-x 2 tdunn3 tdunn3 4096 May 4 11:35 'Data Folder 02'
-rw-r--r-- 1 tdunn3 tdunn3 36 May 4 11:34 data-set-01.dat
-rw-r--r-- 1 tdunn3 tdunn3 39 May 4 11:34 data-set-02.dat
[skelting1@buddy ~]$ ls -l | tail -n 2
-rw-r--r-- 1 tdunn3 tdunn3 36 May 4 11:34 data-set-01.dat
-rw-r--r-- 1 tdunn3 tdunn3 39 May 4 11:34 data-set-02.dat
It is common practice to chain multiple commands one after the other using |
in order to refine data with successive commands.
Shortcuts
Command |
description |
---|---|
!! |
used within a command will be replaced with your last run command |
Ctl+Shift+c |
copies the selected text in the terminal |
Ctl+Shift+v |
pastes in terminal |
Tab |
completes the portion of text that has already been typed |
Up |
autofills the last command |
Home |
jumps to beginning of line |
End |
jumps to end of line |
Searching
grep
The grep
command is one of the most useful commands you could have in your arsenal. It’s used to search for words or patterns within one or multiple files or strings.
To search for lines containing a word or phrase within a file:
[skelting1@buddy ~]$ cat data-set-02.dat
April 1st subject baseline
May 5th subject reports weight loss
June 3rd subject reports light-headedness may be due to trial drug
June 10th trial discontinued
[skelting1@buddy ~]$ grep data-set-02.dat May
May 5th subject reports weight loss
Grep also works with data piped in from other commands. This is actually a common use case for grep
[skelting1@buddy ~]$ ls -l
total 16
drwxr-xr-x 2 tdunn3 tdunn3 4096 May 4 11:35 Data_Folder_01
drwxr-xr-x 2 tdunn3 tdunn3 4096 May 4 11:35 'Data Folder 02'
-rw-r--r-- 1 tdunn3 tdunn3 36 May 4 11:34 data-set-01.dat
-rw-r--r-- 1 tdunn3 tdunn3 39 May 4 11:34 data-set-02.dat
[skelting1@buddy ~]$ ls -l | grep 02
drwxr-xr-x 2 tdunn3 tdunn3 4096 May 4 11:35 'Data Folder 02'
-rw-r--r-- 1 tdunn3 tdunn3 39 May 4 11:34 data-set-02.dat
Another important use case for grep is listing files that contain a pattern with the -l
flag. It is often used with the -i
flag which makes the search case insensative (May is the same as may) and -R
which recursivly searches directories.
[skelting1@buddy ~]$ grep -Ril may
data-set-02.dat
Note
To search for patterns that contain spaces you can either “escape” the spaces using back slashes, i.e. my string becomes my\ string, or you can quote them, my string becomes “my string”. However, quotes can be tricky because they are designed to search for regular expressions so special characters like .
’s and -
‘s are treated as instructions. To search for quoted patterns containing special characters you must “escape” them with back slashes like “my hyper\-strange expression goes \[HERE\] \.” This forces those characters to be read as “literals” meaning they are treated as the literal character you typed and not a regular expressrion instruction.
find
The find command is used to find files matching the given pattern
To find files within the current directory and its subdirectories with “02” in the name
[skelting1@buddy ~]$ ls
Data_Folder_01 'Data Folder 02' data-set-01.dat data-set-02.dat
[skelting1@buddy ~]$ find . -name 02
'Data Folder 02' data-set-02.dat
Find is often used with other commands. For example you can find with the type f (regular file) using find’s -type
and then of pass those to grep using the -exec
flag to select only those files that contain a certain phrase
[skelting1@buddy ~]$ find . -type f -exec grep -l May {} \;
data-set-02.dat
The {}
in the above command will be filled by the output of the rest of the find command. So actual command that returns the above output is grep -l May data-set-01.dat data-set-02.dat
File Permissions and Information
Listing file info
The ls -l
command provides a lot of useful information.
[skelting1@buddy ~]$ ls -l
total 16
drwxr-xr-x 2 tdunn3 tdunn3 4096 May 4 11:35 Data_Folder_01
drwxr-xr-x 2 tdunn3 tdunn3 4096 May 4 11:35 'Data Folder 02'
-rw-r--r-- 1 tdunn3 tdunn3 36 May 4 11:34 data-set-01.dat
-rw-r--r-- 1 tdunn3 tdunn3 39 May 4 11:34 data-set-02.dat
The first part of each line, drwxr-xr-x
, describe the file permissions i.e. who is allowed to do what with this file. The d
means we are looking at a directory and the next nine character correspond to the read(r), write(w), and execute(x) permissions for the owner the file, the access group, and everyone else respectively. For example, the first file has permissions of rwxr-xr-x
which means the owner can read, write and execute(rwx
) and the group along with everyone else can only read and execute(r-x
).
The second part counts the number of hard links to the file. If you’re curious you can find more information here
The third and fourth parts correspond to the owner and the group respectively. These are the same owner and group that are referenced in the first part.
The fourth, fifth, and sixth parts describe the file size, the date the file was created, and its name respectively.
Changing file permissions
The file permissions described in the previous section can be altered with the chmod
command. There are two ways to use this command: the first is easier to understand but bulky while the second is more obscure but also more concise.
The bulky version:
[skelting1@buddy ~]$ chmod u=rwx,g=rx,o=r data-set-02.dat
In the above example u=rwx
gives read, write, and execute permissions to the owner of the file, g=rx
gives read and execute permissions to the file’s group and o=r
gives read permissions to everyone else.
For the concise version each of the permissions are encoded as powers of two. Read (r) is encoded as 4, write(w) is 2, execute(x) is 1, and 0 is reserved for no permissions. In the above example, the owner of the file has permissions of rwx
. To express that using the encoded numbers, simply add them together. 4+2+1=7 so rwx
is equivalent to 7. Next, the group has rx
permissions so, 4+2=6, rx
is equivalent to 6. Finally everyone else only has read permissions so that is simply 2. The final permissions are written in owner-group-other order so the permissions for this file are written as 762,
[skelting1@buddy ~]$ chmod 762 data-set-02.dat
This method may seem complicated but it is a more direct way of representing permissions and it is much more common than the first method so you are more likely to see it when searching for command help than the first example. As with any command, if you use it often enough you will learn it, otherwise don’t be ashamed to look it up.
Compressing and Uncompressing
Compressing a file makes it more portable; both because it can reduce the file size but also because it bundles a directory of files into a single file.
Probably the easiest way to compress a file is to use the zip
command.
[skelting1@buddy ~]$ zip zipped_file.zip my_directory/
To uncompress a zip
file use the unzip
command.
[skelting1@buddy ~]$ unzip zipped_file.zip
Another popular method for compressing files is the tar
command. The tar
command has notoriously difficult to remember flags which has lead to an inside joke among linux users: “Oh so you say you’re a linux expert, but can you tar a file without looking it up?”. This is mainly because no one uses the command frequently enough to remember how it works. That being said, it isn’t difficult; just hard to remember so don’t be afraid to refer back to this guide if you forget because even the experts have to look it up.
[skelting1@buddy ~]$ tar -czvf compressed.tar.gz my_directory/
Technically, tar
isn’t a compression tool. It creates archives, called tarballs, which could be compressed but don’t have to be. These archives essentially bundle different files together into a single file. In the above command the -c
flag creates an archive, -z
compresses it using the gzip
format, -v
displays the progress in the terminal, and -f
allows you to specify the file name of the final tarbal.
Untarring a file can be accomplished as follows:
[skelting1@buddy ~]$ tar -xvf compressed.tar.gz
In the above example: -x
extracts the files from the tarbal, -v
displays progress in the terminal, and -f
allows you to specify the input file name.
Downloading Files
Downloading files from sources on the internet is a crucial part of modern terminal usage and there are several ways to accomplish it for different use cases.
Note
Please review the Cluster Usage: Rules and Guidelines section and the Data Transfer section before moving data onto buddy
wget
Wget is a command line tool for pulling files from a download link. To use it, just navigate to the directory that you wish the file to be downloaded to, copy the link to your file, and use the following command.
[skelting1@buddy ~]$ cd my_directory
[skelting1@buddy my_directory]$ wget https://www.google.com/images/branding/googlelogo/2x/googlelogo_light_color_272x92dp.png
This example downloads the google banner image.
Warning
Since wget allows you to pull data from another source, it can be dangerous. It is important to be sure your download link is correct, you know what you are downloading and you verify the correct file has been downloaded
sftp
Sftp is a file transfer protocol with a utility similar to ssh which we discussed in a previous section.
[myuser@mycomputer ~]$ sftp buddyUsername@buddy.uco.edu
sftp>
Note
You are able to use the ls
and the cd
commands within the sftp prompt so basic navigation is possible.
To move files from your end to buddy first navigate to the directory where your file is and then move the file to buddy using sftp and the put
command.
[myuser@mycomputer ~]$ ls
myfile1.txt myfile2.dat foobar/
[myuser@mycomputer ~]$ sftp buddyUsername@buddy.uco.edu
sftp> put myfile1.txt
Uploading myfile1.txt to /home/buddyUsername/myfile.txt
myfile.txt 100% 236KB 4.5MB/s 00:00
Files can be retrieved from a remote server by connecting to it via sftp and using the get
command. The file will be downloaded to whichever directory you were in when you connected via sftp.
sftp> get myfile1.txt
Fetching /home/buddyUsername/myfile1.txt to myfile1.txt
myfile1.txt 100% 236KB 34.4KB/s 00:06
To leave an sftp session use the exit
command.
sftp> exit
[myuser@mycomputer ~]$
git
See github section
Tips and Tricks
Some rapid fire tips and tricks
If you use a command often enough, you will learn it. Otherwise don’t be ashamed to look it up. There is no point in memorizing something you’ll never use and even experienced linux users look things up regularly so you’re in good company
Tab complete is your friend. Just type enough of something to uniquely identify it and then press tab to fill in the rest. It saves so much time
The
Home
key allows you to jump to the beginning of a line while theEnd
key jumps to the end.If you want to stop a command from running before it finishes or you want to get out of something try pressing
Ctrl+c
. This sends a keyborard interrupt which should tell the command to haltWhen you are first learning the terminal and using different commands it is common to get stuck inside of something and not know how to get out of it. When this happens it is common practice to spam the keys that are most commonly used to escape various programs. Try
q
for quit,ESC
for escape,Ctrl+c
sends a keyboard interrupt and should kill the command you are inside of,Ctrl+d
sometimes works ifCtrl+c
fails, if you are able to type try typing “exit” or “quit”, and if all else fails just close the terminal window and open a new one; we’ve all had to do that once or twice
Basic Bash Scripting
Sometimes you may find that you need to run several commands one after another or even with some additional logic like branching or loops; this is where scripting becomes useful. The idea is to write down a series of commands within a logical structure in a file and then execute the file just like a normal program. Scripting makes it possible to handle complex scenarios in a repeatable way which is why we use them to submit jobs to the cluster using slurm. Though bash scripts can be executed directly, scripts on Buddy must be run using slurm. See the slurm section for more information.
Hello World
Every script begins with a shebang, #!
, followed by the path to the appropriate interpreter which is /bin/bash
in this case so our hello world script will begin like so:
1#!/bin/bash
To print “hello world” to the terminal we can use the echo
command. Lines beginning with a hash, #
, are comments. They are not executed by the interpreter and are just for the benefit of anyone reading the code. We will add a comment to label our simple script.
1#!/bin/bash
2
3# This statement prints hello world to the terminal
4echo "hello world"
Basic Logic
Warning
Spaces and newlines are very important parts of the bash syntax. Something as simple as adding a space or forgetting to add one can cause a difficult to find error so pay attention to leading and trailing spaces in the following examples
Variables
An essential part of any programming language is how variables are handled.
1#!/bin/bash
2
3# Declare variable in bash. Notice: No space before or after the =
4my_variable=8
5
6#reference variable in bash
7echo $my_variable
It is important to note that variables in bash are untyped. You can treat them as strings that are interpreted depending on the situation
Branching and Conditions
One of the most ubiquitous and most useful programming structures are branching statements which decide which code block to run based on the provided condition.
Here are some of the conditions available in bash
condition |
description |
---|---|
$a -eq $b |
returns true if a and b are equal (both are numbers) |
$a -lt $b |
returns true if a is less than b (both are numbers) |
$a -gt $b |
returns true if a is greater than b (both are numbers) |
$a == $b |
returns true if a and b are equivalent (both are strings) |
$a != $b |
returns true if a and b are not equivalent (both are strings) |
! [ condition ] |
returns true if condition is false |
-d $a |
return true if directory at path a exists |
-e $a |
return true if file at path a exists |
-r $a |
return true if file at path a exists and can be read |
-w $a |
return true if file at path a exists and can be written to |
-x $a |
return true if file at path a exists and can be executed |
-z “$a” |
return true if variable a is defined |
Bash branches might look a little strange if you have used another programming language like python or java.
1#!/bin/bash
2
3# branching. Note the spaces before and after the condition
4if [ condition ]
5then
6 echo condition is true
7elif [ condition2 ]
8then
9 echo condition is false and condition2 is true
10else
11 echo condition and condition2 are false
12fi
There are a few things to unpack here. Firstly the if block ends with fi
. Statement blocks in bash end with the block name spelled backwards. Secondly after a conditional statement like if
and elif
the body is declared with a then
statement. Finally, statements are separated by new lines. However, multiple statements can be declared on the same line by separating them with a ;
. This feature allow us to rewrite the above example in a different way which you do tend to see if you search for examples online. The style you choose is up to you but here is how the above example looks making use of ;
.
1#!/bin/bash
2
3# branching
4if [ condition ]; then
5 echo condition is true
6elif [ condition2 ]; then
7 echo condition is false and condition2 is true
8else
9 echo condition and condition2 are false
10fi
Note
conditions in bash can get complicated when you start to branch out to using different “test constructs” like (())
and []
and unusual operators like -z
which checks if a variable is defined. Don’t worry about learning these until you run into a situation that requires them
Loops
Loops are essential for any programming language and bash has three varieties: while loops, until loops, and for loops. All loop blocks begin with do and end with done.
1#!/bin/bash
2
3### The following loops are equivalent
4
5# While loop
6a=0
7while [ $a -le 5 ]; do
8 echo a equals: $a
9 ((a=a+1))
10done
11
12# until loop
13a=0
14until [ $a -ge 5 ]; do
15 echo a equals: $a
16 ((a=a+1))
17done
18
19# For loop
20# Note that the variable "a" after the "for" does not come after a "$".
21# This is because a is being declared here and is set equal to each
22# value in the sequence "0 .. 4" one after the other.
23for a in {0 .. 4} ; do
24 echo a equals: $a
25done
Note
in the for loop example, ..
declare a range from 0 up to and including 4 . If it is equivalent to just typing 0 1 2 3 4 .
Providing Input
Passing input to a script from the command line is as simple as including your input, separated by spaces, after you invoke the script.
[skelting1@buddy ~]$ sbatch input_example.sh input1 input2 input3 input4
Then each input will be available within your script through number variables along with the name of the script in the 0 number variable.
1#!/bin/bash
2
3echo this script is called: $0
4echo input one is: $1
5echo input two is: $2
6echo input three is: $3
7echo input four is: $4
All inputs and the name of the script can also be accessed in an array $@
.
1#!/bin/bash
2
3echo input command: $@
Troubleshooting
- Basic debugging involves:
Identifying the error message
Determining the source of the bug
Fixing the bug
Identifying the error message may or may not be easy depending on how clear the ouptut of your command is and how much output there is. There is a tendency for error messages to get burried in the output of software if it is poorly written or simply complex. Take time and read carefully to figure out what the computer is trying to tell you about what has gone wrong.
Note
Warnings are different from errors in that they indicate bad practice, outdated commands, or other minor issues while errors indicate serious issues. They can sometimes hint at the source of an error but that is after you have looked into any error messages that you find.
Determining the source of the bug usually involves some knowledge of how your program is constructed though some error messages will tell you the line number that the error occured on (and we are incredibly grateful for that). A powerful technique is to simply copy the error message (or part of the message) into a web browser and search for other people who have had the same problem. This is usually the first step if your someone else’s software and is very common even and especially with professional programmers. Internet searching is a skill in and of itself so we won’t go into detail except to say that there is plenty of helpful information out there as well plenty of misleading information. Be careful when following someone’s advice and even then, take precautions, make backups and contact administration if you are unsure or have any questions.
Fixing the bug is the hard part. If you misidentified the actual error message or the real cause of the error then you will make a fix and it won’t work or might even break something else. Part of working through this last step is going back to the previous two and trying something else. Reread the error message, try changing the way you phrase your search, gather more information, and try again. Debugging can often feel like you’re battling with the computer and it is refusing to yeild. If you get stuck or have any questions contact administration with your bug and some of the information you collected and we will try to help you narrow down your issue.
